Description

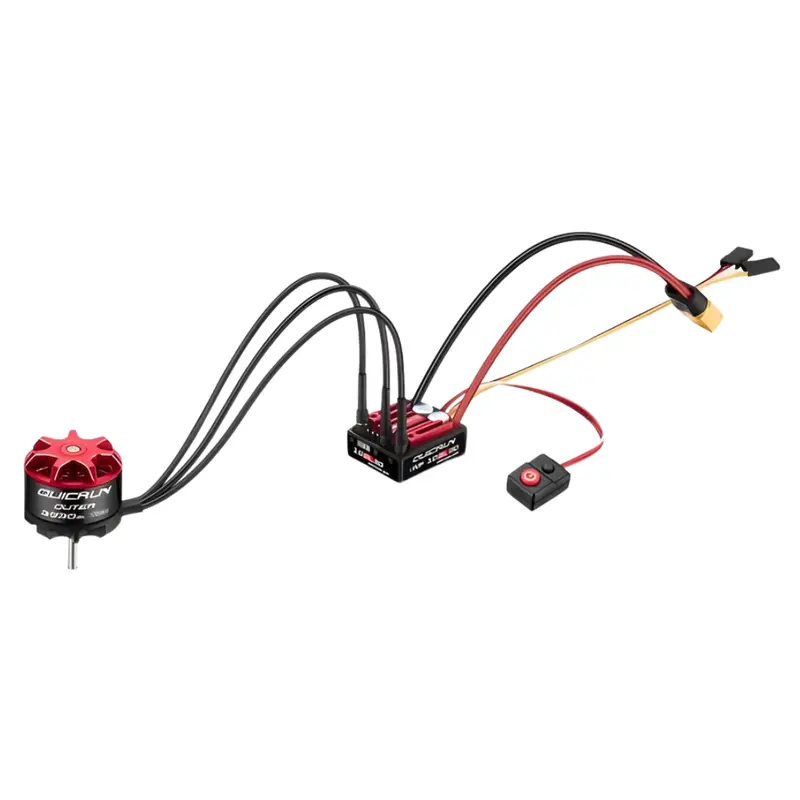

The Hobbywing QuicRun WP 10BL80 Crawler ESC is a compact and powerful waterproof brushless speed controller designed for 1/10 scale crawlers. Supporting both sensored and sensorless brushless motors, it delivers smooth throttle control, strong low-speed modulation and reliable performance across demanding terrain. With adjustable BEC output up to 8.4V and multiple programming options, the 10BL80 Crawler is built to suit modern high-performance crawler setups.
Features
- Waterproof design: Suitable for all-weather crawling conditions
- Brushless support: Compatible with sensored and sensorless motors
- High current capacity: 80A continuous and 240A peak output
- Adjustable BEC: Selectable 6V, 7.4V or 8.4V at 5A
- Multiple programming options: SET button, LED box and LCD program boxes supported
- Independent programming port for convenient setup
- Compact and lightweight design for easy installation
Specifications
- Product Number: 30108002
- Scale: 1/10
- Motor Type: Brushless (sensored and sensorless)
- Waterproof: Yes
- Continuous Current: 80A
- Peak Current: 240A
- Input Voltage: 2 – 4S LiPo (we recommend no more than 3S)
- BEC Output: 6V / 7.4V / 8.4V at 5A
- Input Wires: 14AWG, 175mm (red and black)
- Input Connector: XT60
- Output Connector: 3.5mm gold female
- Dimensions: 36 x 30 x 15.5mm
- Weight: 47.8g (including wires and connectors)
Includes
- 1 x QuicRun WP 10BL80 Crawler ESC
Important Notes
- Designed for 1/10 crawler applications
- OTA programmer and firmware upgrade not supported
- Ensure correct motor and battery compatibility before installation
